Durable Auxiliary Equipment Un Coiler Car Hydraulic Expand / Loose For Quick Coil Loading

Name: Durable Auxiliary Equipment Un Coiler Car Hydraulic Expand Loose For Quick Coil Loading
Brand: NKH MACHINERY
Price: 1 USD

Brand Name : NKH MACHINERY

Model Number : 3T*600MM

Certification : CE/SONCAP/CSA

Place of Origin : CHINA

MOQ : 1 UNIT

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10 UNITS/MONTH

Delivery Time : 10 WORKING DAYS

Packaging Details : NUDE CARGOES WITH ROLL FORMER IN 20FT/40FT CONTAINER

Condition : New

Warranty : 12months

Production capacity : 12-15m/min

Color : Client's Request

Tile type : work with roll forming machine/building material machinery

Use : Roof/wall

Contact Now

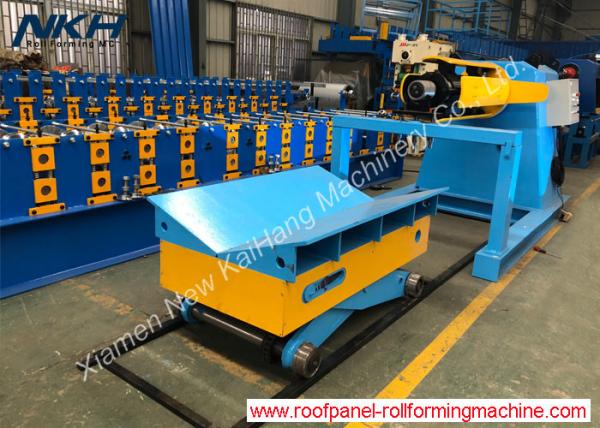

Un - coiler with coil car for quick coil loading, hydraulic expand/ loose for roof tile forming machine

Application:

There are different de-coilers or un-coilers according to driven solutions, for example, manual de-coiler with no power, electrical de-coiler with an electric motor and hydraulic un-coiler with an electric motor and hydraulic oil pump. We normally provide hydraulic de-coiler as a standard de-coiler; however, we may provide manual de-coilers as spare for some special application.

Quick Detail:

Thickness : 0.4mm-0.8mm
Material : Galvanized Sheets, PPGL, G300-G550
Input width: Max. 1250mm
Material weight: Max. 5MT
Rotation way: by driven motor

Description/Technical Parameter details of the de-coiler

Hydraulic system expand coil inner hole, Pump motor: 3KW

Frequency Inverter to regulate turning speed, Motor: 3KW

TAIWAN Delta brand inverter

Taper wedge expand type

Coil Inner-diameter=510+/-30mm

Coil width = Max.1250mm

Load capacity = Max. 5Tons

Four complete steel plate (18mm) design to make the carriage stronger

Profile Drawing/Layout/Equipment reference pictures:

Durable Auxiliary Equipment Un Coiler Car Hydraulic Expand / Loose For Quick Coil Loading
