heavy capacity hydraulic de-coiler with coil car/ cart for high rib metal deck roll forming machine, cut to length line, slitting line
Application:
Based on different capacities, we provide 5ton hydraulic un-coiler, 8ton hydraulic de-coiler, 10ton hydraulic de-coiler, 12ton hydraulic de-coiler and 15 ton hydraulic de-coiler. Usually there is a coil car equipped for hydraulic de-coiler over 5ton capacity.
The 12Tons hydraulic de-coiler with coil car is for bridge decking machine, heavy duty roofing machine etc.,
Quick Detail:
- Thickness : 0.8mm-1.2mm
- Material : Pre-painted Coil, 345 Mpa yield strength
- Input width: 1250mm
- Material weight: Max. 12MT
Description/Technical Parameter details of the de-coiler
15Tx1500m Hydraulic un-coiler with coil car
Hydraulic system expand coil inner hole, Pump motor: 5.5KW
Frequency Inverter to regulate turning speed, Motor: 7.5KW
Taper wedge expanding system
With support arm at the end of the main mandrel for to keep the machine running stable
The rotation speed to be suitable for the roll former with max. line speed 15mpm
Load capacity = Max.15Tons
The main shaft diameter: ф200mm
Coil ID=460-540mm
Coil OD=Max. 1300mm
Coil width = Max.1500mm
Hydraulic snubber arms on the top to hole the coil, to avoid coil becomes loose when stop for packing
15 tons cap. coil cart
Driven by a separated motor
Up/down stroke of Coil Car: Max.300 mm
Forward/backward stroke of coil car: Max. 1600mm

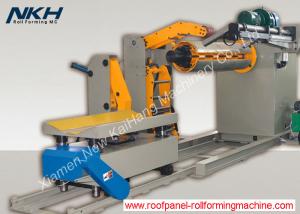

Profile Drawing/Layout/Equipment reference pictures:
